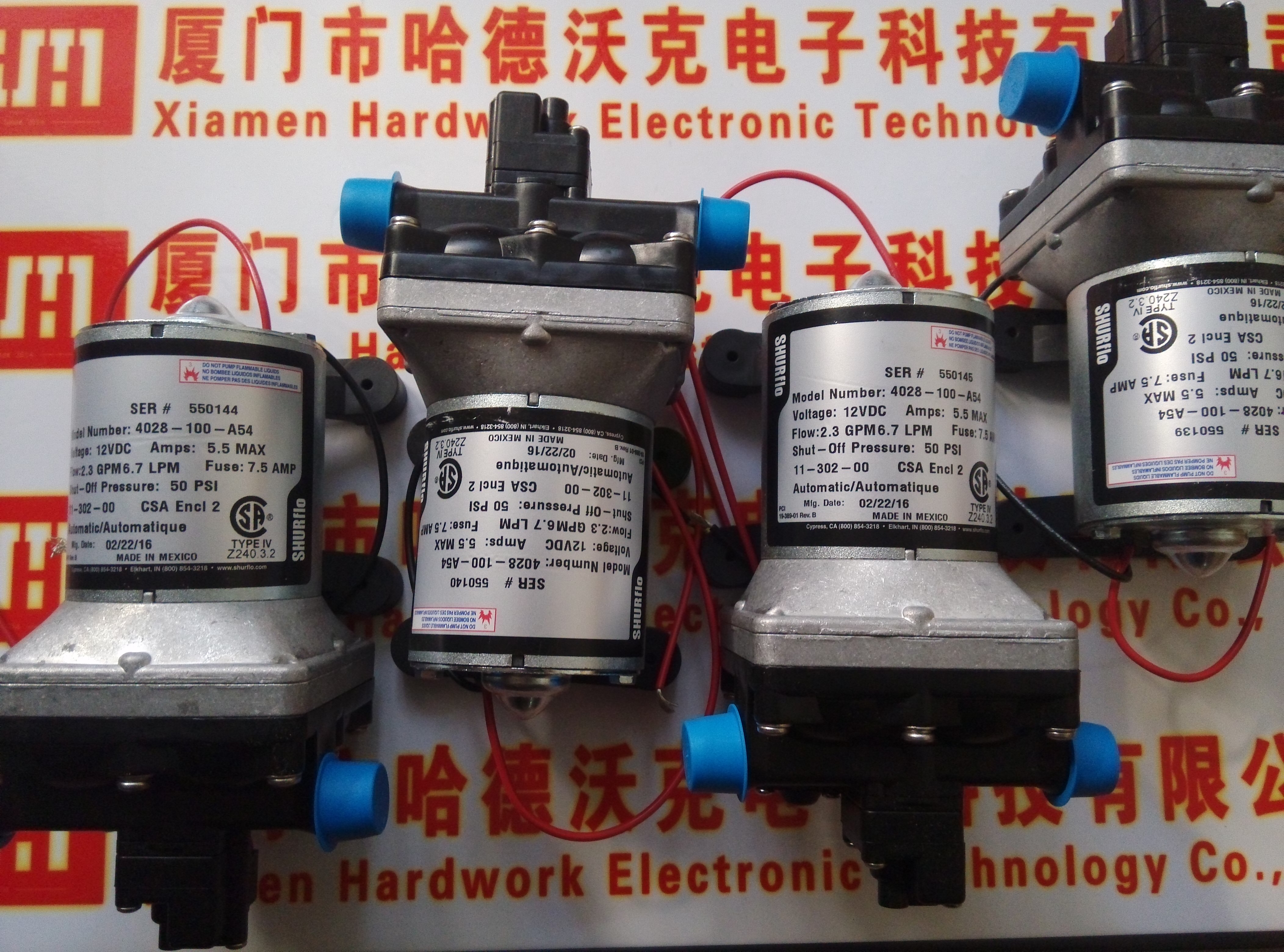

SHURflo 4028-100-A54
SHURFLO REVOLUTION? 4008 SERIES PUMP
RV FRESH WATER PUMP – PRODUCT TECHNICAL DATA SHEET
OEM: 4028-100-A54
AFTERMARKET: 4028-100-E54
APPLICATION: APPLICATION: Multi-fixture RV fresh water pump installation. This pump may be used for general fresh water transfer
PUMP DESIGN:Type: 4 Chamber Diaphragm pump
Check Valve: (1-way operation) Prevents Reverse Flow
Ports: ?”-14 NPSM-MaleLiquid: 130°F [54°C] Max
Dry-Prime: 6 feet [1.82 M]Run Dry: Yes
Inlet Pressure: 30 PSI Max. [2.06 Bar]
ELECTRICAL:
Motor: 12V DC Permanent Magnet, Intermittent Duty
Protection: Thermal Overload, Automatic Restart
Leads: 16 AWG, 10” [25 cm] Red +, 13” [33 cm] Black
Fuse: 7.5 Amp Recommended
Control: Shut-Off 50 PSI [3.4 Bar] ± 2 PSI [0.13 Bar]Re-start 40 PSI [2.8 Bar] ± 2 PSI [0.13 Bar]Maximum By-Pass 55 PSI [3.8 Bar]± 2 PSI [0.13 Bar]
MATERIALS OF CONSTRUCTION:
Housings: Polypro
Valves/Seals: EPDM
Diaphragm: Santoprene
Hardware: Stainless Steel and Zinc Plated Steel
AGENCY APPROVALS:CSA
SHIPPING INFORMATION:Approx. Net Weight: 5 lbs. [2.3 Kg] ea.
Carton Qty.: 12
Approx. Carton Weight: 60 lbs. [27 Kg]
Approx. Carton Size: 24”L X 18”W X 11”H [61cm x 46cm x 28cm]
